Phoropters

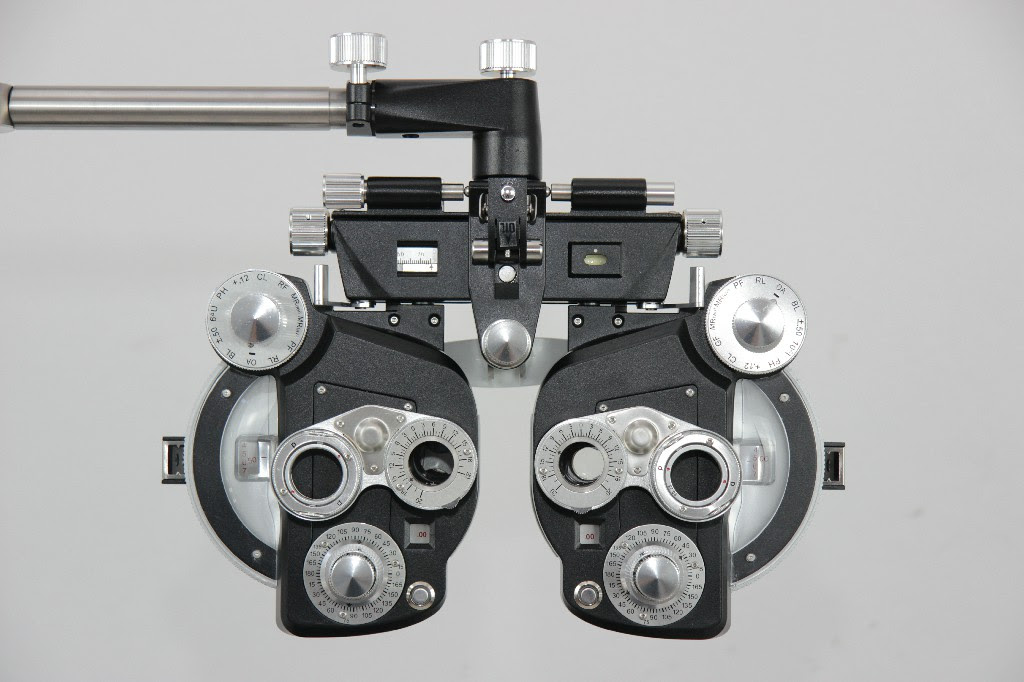

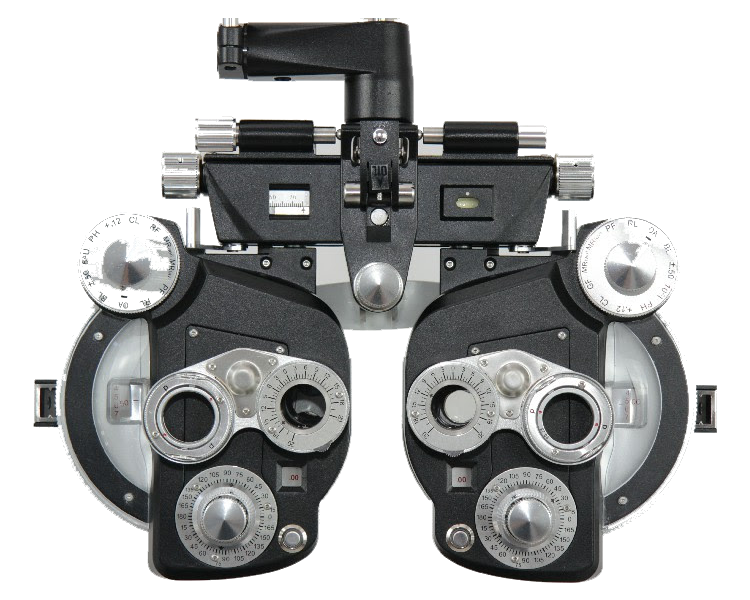

CT-10
Black

Lumixx Phoropters

Sale Price: $2,950.00

TWO YEAR WARRANTY

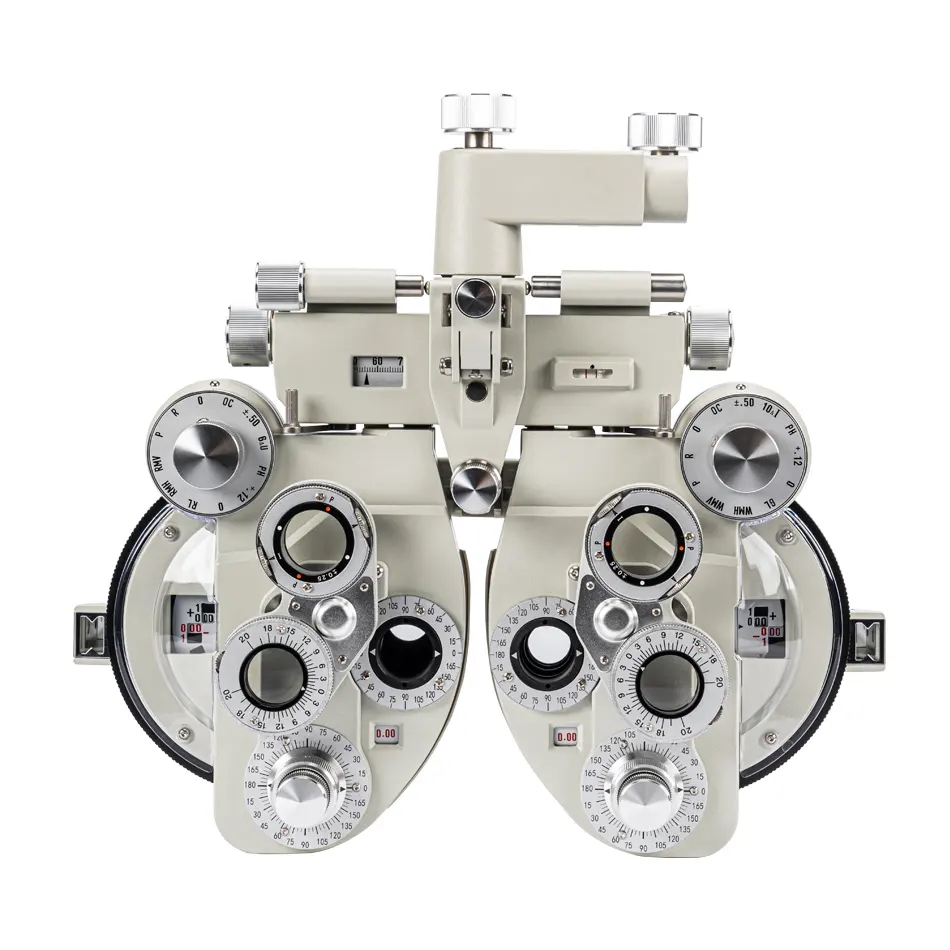

CT-10
White





Key features include:

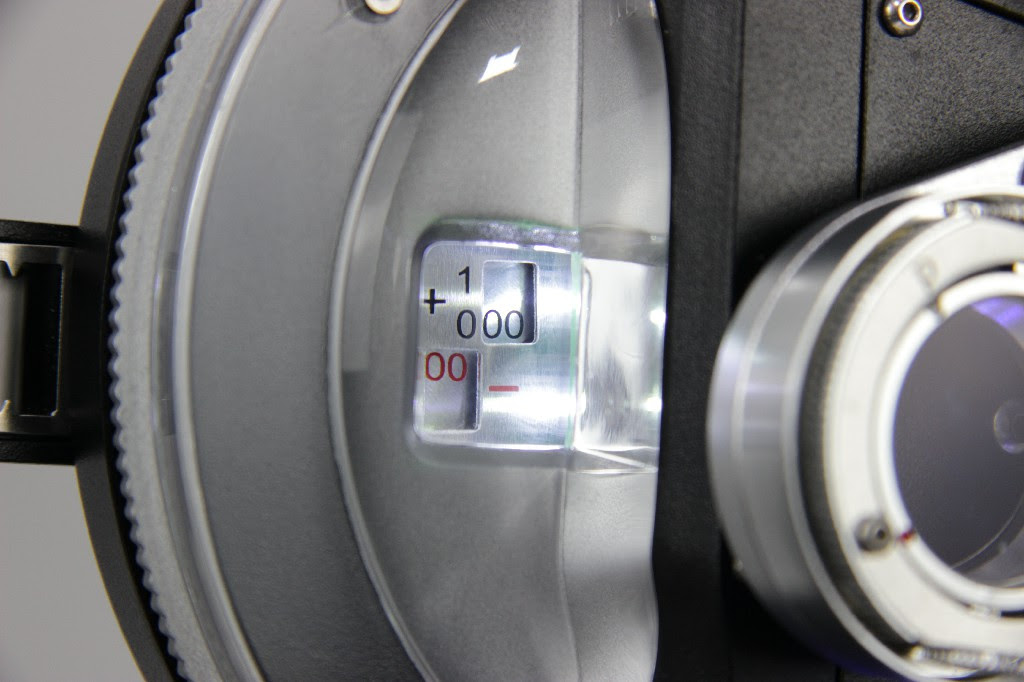

  • Illuminated sphere, cylinder power and cylinder axis scale. Easier to read the scale value even in dark environments.

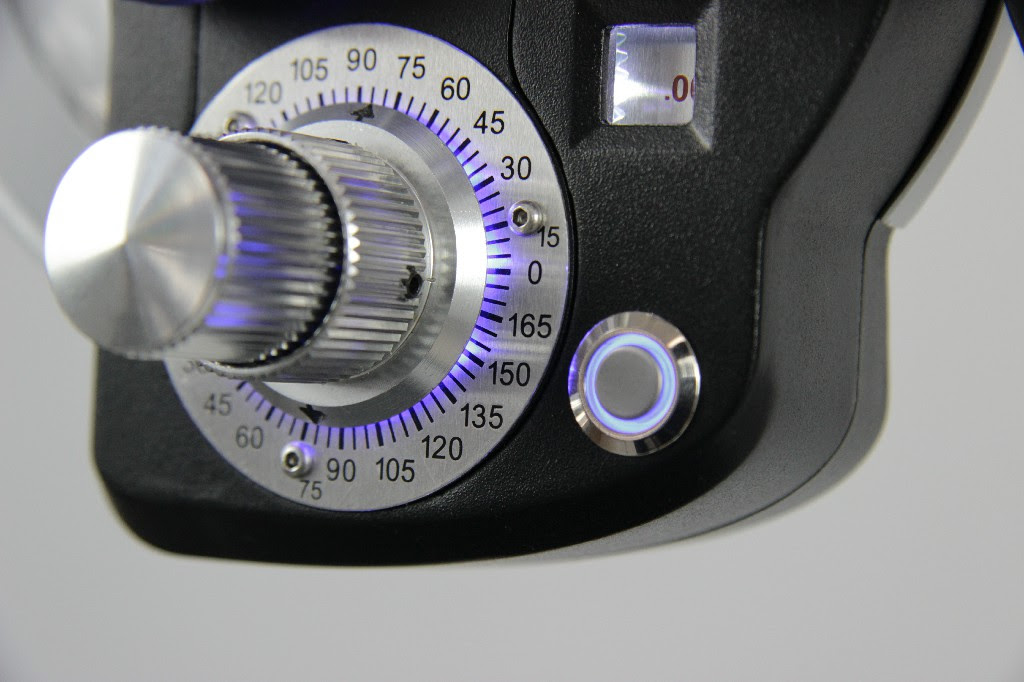

  • Two separate main power buttons design allows you to turn on/off the light on each side at your own choice.

  • The energy efficient LED illumination eliminates the need to change the bulb.

  • With the majority parts made out of metal, long life span is guaranteed.

Spherical Power

  • Range: +16.75D ~ -19.00D
  • When applied with auxiliary lenses +10.00D, -1O.OOD(option): +26.75D ~ 29.00D
  • Step: 0.25D
  • When applied with auxiliary lens +0.12D: Step: 0.12D

Cylindrical Power

  • Range: 0.00D~ -6.00D
  • When applied with auxiliary cylinder lens -2.00D: 0.00D~ -8.00D Step: 0.25DD
  • When applied with auxiliary cylinder lens +0.12D: Step: 0.12D

Cylinder Axis

  • Range: 0°~180
  • Step: 5°

Cross Cylinder

  • ±0.250 Cross Cylinder Lens Synchronized with Cylinder Axis.
  • (±0.370, ±0.500, Cross Cylinder Lens (option))

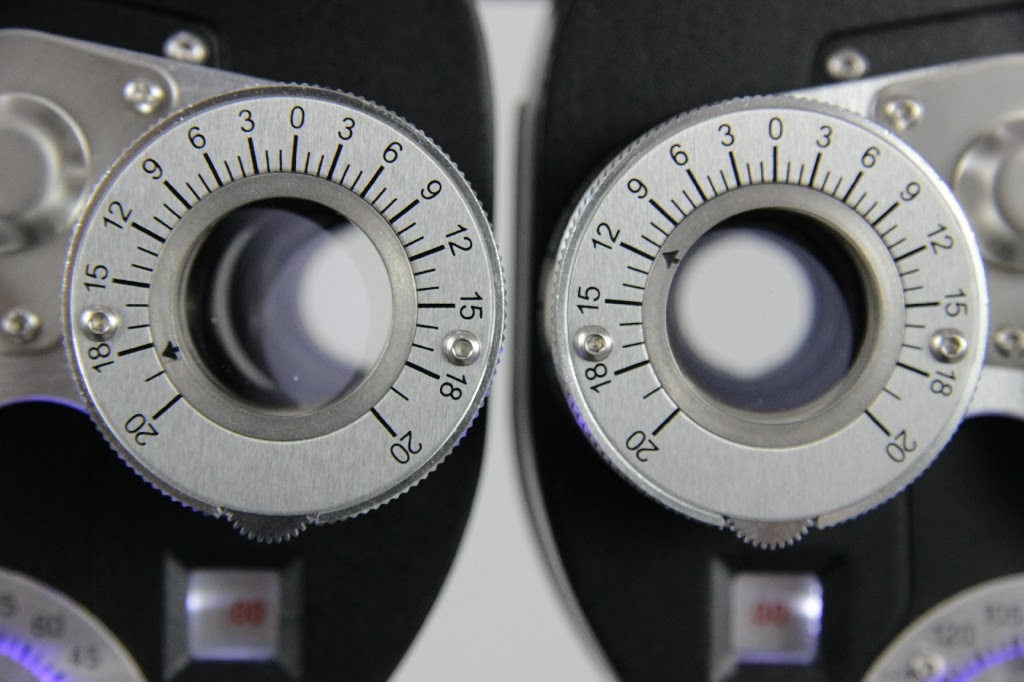

Rotary Prism

  • 0 to 20 prism diopter with a minimum of 1Δ steps

P.D Adjustment

  • 48~ 75mm

Forehead-rest Adjustment

  • 16mm

Vertex Distance

  • 12mm (From corneal point to standard lens surface)

Dimensions

  • 338(L) x 99(W) x 292(H) mm

Weight

  • 5 kg

Accessories

  • Auxiliary lens
  • A kit for near point vision chart
  • Sanitary face shield
