Main technical data
Hartman imaging analysis and process technology, accurate measurement result
New optical design, clear human eye image effect
High speed image acquisition system, advanced image deal and analysis
Auto-focus and auto-measurement
The screen can rotate freely up, down, left and right
Automatic up and down function for the chin rest
High speed printer, can cut printing paper automatically
Vertex distance 0.0.12.0, 13.75, 15.0
Sphere: -20.00~+20.00D (0.01/0.06/0.12/0.25D step)(VD=12mm)
Axis: 1°~180°(1° step)
Cylinder form: -, +, ±
Pupil distancL 10-86mm
Min. pupil diameter measurable: Ȼ2.0mm
Measuring light Energy: Ȼ30uw (Insure measuring safety)
Radius of curvature: 5.0-10.0mm(0.01mm unit)
Corneal power 3.00D-67.00D (In case that the corneal equivalent refractive power is 1.33.75)
Corneal Astigmatism: 0.00-15.00D(0.06D/0.12D/0.25D Unit)
Data storing: Each 10 measured values of left and right eyes
Axis: 1-180°
Chart: Auto chart
Monitor: SHARP 10.4” TFT LCD touch screen (Adjustable viewing angle )

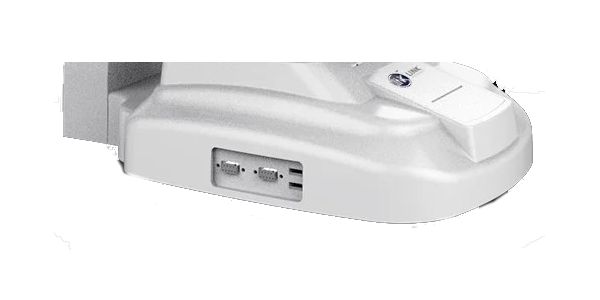

Built-in printer: 57mm thermal printer, auto paper-cutting
Electrical: AC 100-250V, 50/60Hz
N.W.: 48lbs
G.W.: 58lbs
Packing size: L 24” x W 16” x H 24”
